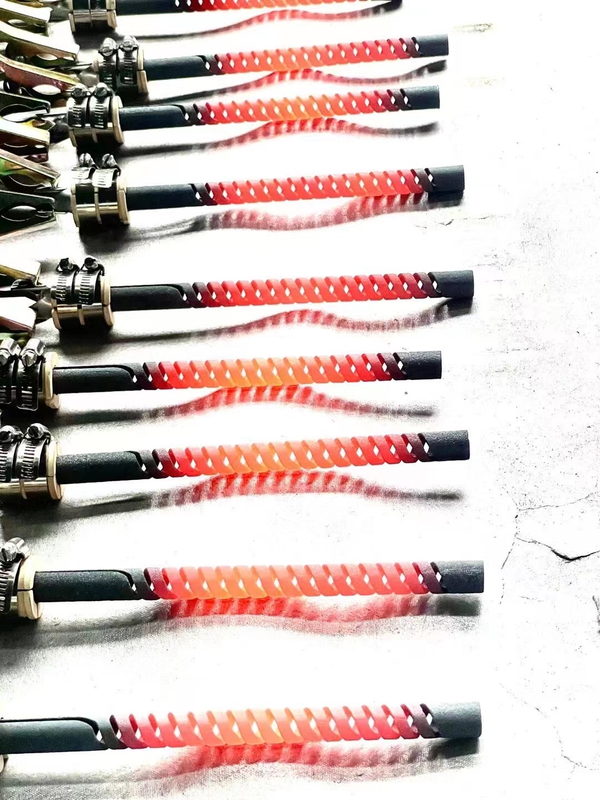

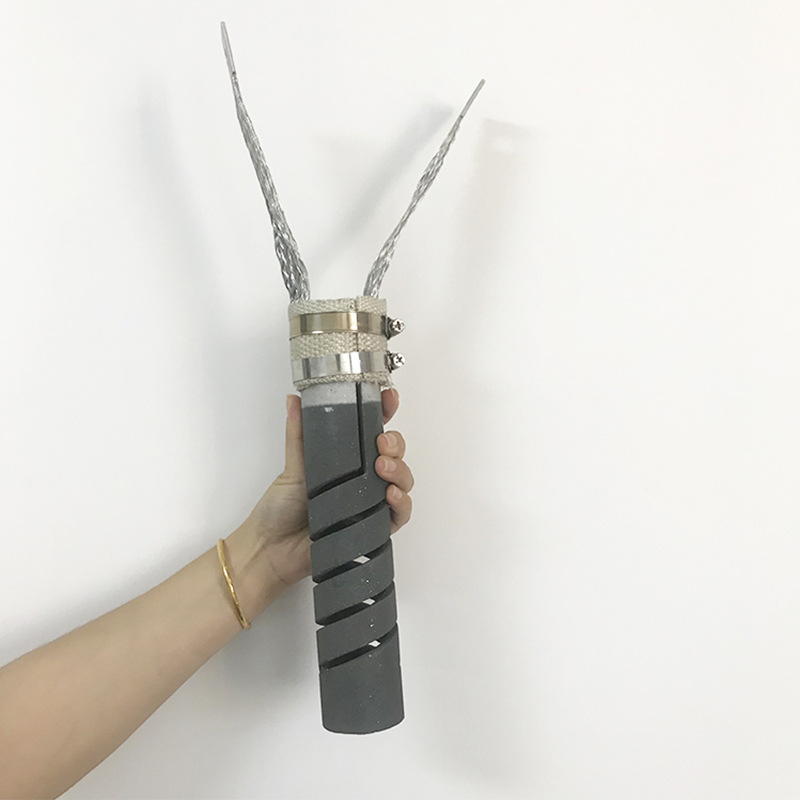

Silicon carbide elements

Silicon carbon rod is a non-metallic electric heating element made from high-precision silicon carbide (SIC) as the main raw material and recrystallized at high temperature (2200 ℃). The maximum temperature for use is 1600 ℃, the normal temperature for use is 1450 ℃, and the continuous service life can reach over 3000 hours. Due to the high service temperature, the silicon carbide rod has the characteristics of high temperature resistance, oxidation resistance, corrosion resistance, fast temperature rise, long service life, small high-temperature deformation, convenient installation and maintenance, and good chemical stability.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • tznice sprial

  • tznice

Multi purpose, this product is suitable for industries such as powder metallurgy, oil bearing, chemical, glass, electronic ceramics, precision casting, aluminum alloy die-casting, magnesium alloy die-casting, zinc alloy die-casting, magnetic materials, etc.

chemical property:

The silicon carbide rod has good chemical stability and strong acid resistance. Under high temperature conditions, alkaline substances can erosion it.

Silicon carbon rod components can react with oxygen and water vapor for long-term use above 1000 ℃ as follows:

①Sic+2O2→Sio2+CO2 ②Sic+4H2O=Sio2+4H2+CO2

As a result, the content of Sic2 in the component gradually increases, and the resistance gradually increases, leading to aging. If there is too much water vapor, it will promote the oxidation of SiC, and the H2 generated by the ② reaction will combine with the O2 in the air to form a vicious cycle. Reduce component lifespan. Hydrogen (H2) can reduce the mechanical strength of components. Nitrogen (N2) below 1200 ℃ can prevent SiC from oxidizing and reacting with SiC above 1350 ℃, allowing SiC to decompose chlorine (Cl2) and complete the decomposition of SiC.
